CIEMATRI-009
MED
Other · 1988–2012
Approximately 70 °CTop brine temperature
125 kWth at 200 °CNEP parabolic-trough solar field nominal power
About this facility

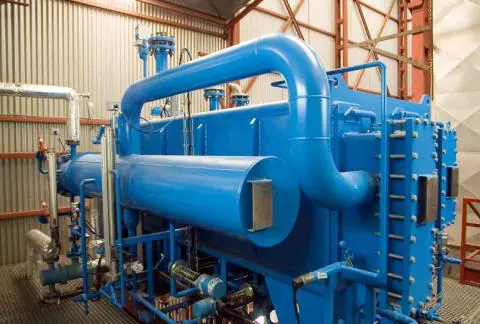

MED is a pilot plant based on multi-effect distillation, with 14 vertically stacked effects in a forward-feed configuration. Evaporation and condensation stages desalinate water at a top brine temperature of approximately 70 °C. At design conditions, the process requires approximately 200 kW of thermal power to produce 3 m³ of desalinated water per hour, with a recovery ratio of 37.5%. Solar heat can be supplied by the AQUASOL-II flat-plate collector field or, for MED processes coupled with an absorption heat pump, by a small-aperture parabolic-trough field.
Sectors and technologies
Desalination, Agriculture, Solar thermal energy
Technical specifications
14 parameters| Facility type | Other |
|---|---|
| Year of construction | 1988–2012 |
| MED effects | 14, vertically stacked |
| Nominal fresh water production | 72 m³/day (3 m³/h) |
| MED thermal consumption | 200 kW |
| Top brine temperature | Approximately 70 °C |
| Recovery ratio | 37.5% |
| Double-effect absorption heat pump consumption | 100 kW at 180 °C |

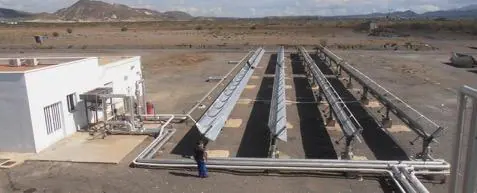

| NEP parabolic-trough solar field area | 230 m² |
| NEP parabolic-trough solar field nominal power | 125 kWth at 200 °C |

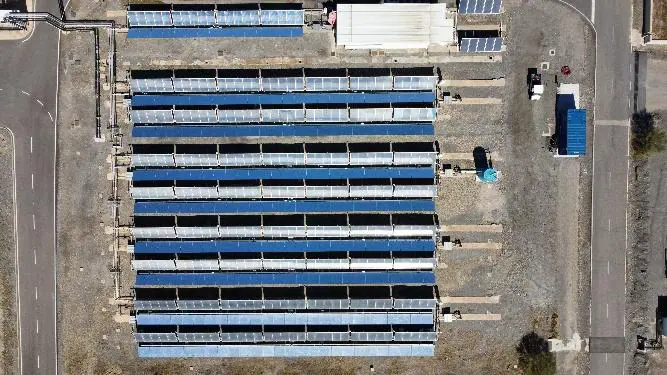

| AQUASOL-II flat-plate solar field area | 606 m² |
| AQUASOL-II nominal thermal output | 323 kWth |
| AQUASOL-II collector count | 60 |
| AQUASOL-II heat storage | Two water tanks, total 40 m³ |
Available services
- Solar Thermal Desalination by Multi-Effect Distillation
- Efficiency improvement of low temperature distillation processes by absorption heat pumps
- Efficiency improvement of MED processes by absorption heat pumps
- Low-temperature solar collectors for thermal water treatment
Contact & links
Patricia Palenzuela (patricia.palenzuela@psa.es)/Lidia Roca (lidia.roca@psa.es)
